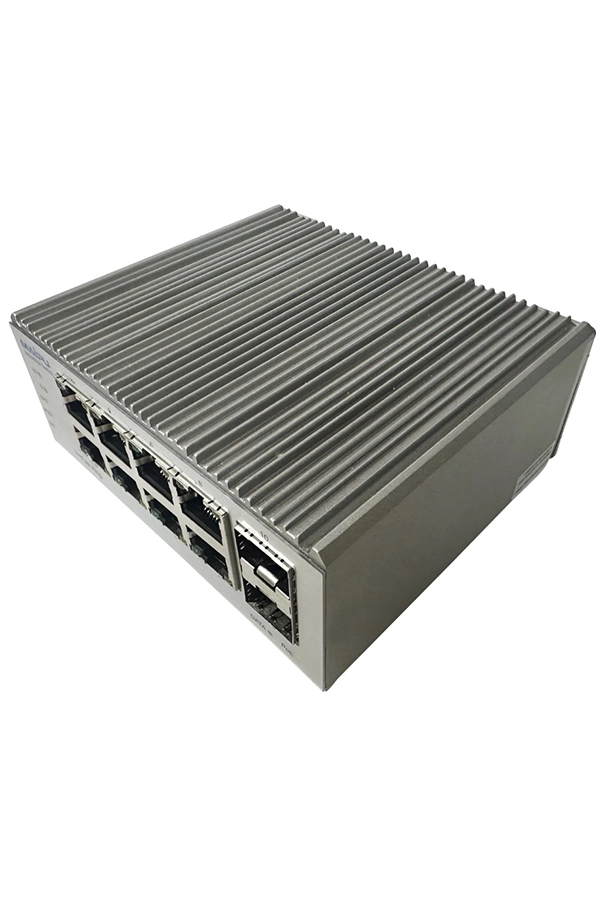

S2300(E1) Series L2 Gigabit Industrial Access Switch
S2300 series 8-Port L2 Gigabit industrial switch can be used in different scenarios, such as Railway, Transportation, Factory, and Telecom. It provides the stable, reliable and secure high-performance switching service for industrial environment. S2300 series is designed for harsh industrial environment, external DC wide range power input; IP40 protection grade metal chassis design, port surge protection up to 6KV; the working temperature range of -40~75℃ can meet the special needs of industrial automation control.
S2300-10TFI-DC48(E1) provides 8*10/100/1000M electric ports and two 1000M SFP interfaces, DC Power Supply.
S2300-10TPI-DC48(E1) provides 8*10/100/1000M electric ports and two 1000M SFP interfaces, PoE/PoE+ enable, DC Power Supply.
S2300-12TUPI-DC48(E1) provides 8*10/100/1000M electric ports and four 1000M SFP interfaces, PoE/PoE+/PoE++ enable, DC Power Supply.
Product Features
IP40 protection, industrial Fanless thermal conduction.
DIN-rail aluminum alloy shell, which is compact and convenient.
IEEE802.3af/at/bt standard, maximum 90W POE power of single port (S2300-12TUPI-DC48)
Intelligent standard 48V POE power supply, self-negotiation power supply according to terminal type.
Supports STP/RSTP/MSTP ring protection.
Provides hierarchical bandwidth services through rate limiting and traffic shaping in the layer-2 QoS.
Supports simple network management protocol (SNMP).
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
