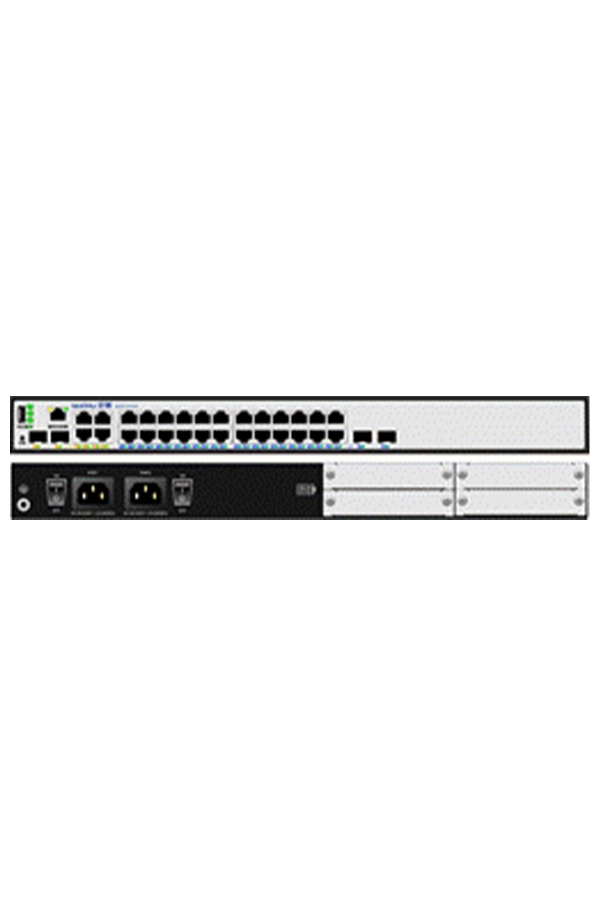

NSR2900X-14D MPLS Access Router

NSR2900X-14D MPLS Access Router

The NSR2900X-14D modular access router by Maipu is a new-generation enterprise-class router designed for small and medium-sized branch offices of enterprises and government agencies. It integrates diverse WAN technologies, including Ethernet, SDH, and 5G/4G/3G networks, offering flexible access options for enterprise users.

The NSR2900X-14D combines routing, switching, and security functions, supporting robust encryption algorithms to ensure data security. Its LAN L2/L3 switching capabilities significantly enhance the flexibility of fixed interfaces.

The NSR2900X-14D has one RJ45 console port, one USB interface, 2*10GE SFP+ WAN ports, 2*GE SFP WAN ports, 4*GE RJ45 WAN ports, 24*GE RJ45 LAN ports, four expansion slots, dual AC power supply.

(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)

Product Features

R

Flexible uplink

NSR2900X-14D integrates fixed WAN and LAN interfaces. The WAN uplink supports various mainstream WAN access link technologies, such as Ethernet, 5G/4G, E1/CE1, POS, and V.35 serial line.

R

Extensible modular slots

NSR2900X-14D is modular designed. The whole device supports 4 extended slots.

R

High performance

  • Multi-core high performance processor.
  • 1/10G high-speed Ethernet WAN port.
  • Built-in hardware acceleration engine, high encryption performance.
  • Maipu Express Forwarding (MEF) technologies, speeding up forwarding and processing of data packets.
R

5G Ready

NSR2900X-14D is designed for future 5G networks, with higher throughputs with 5G NR. WAN networks are looking at wireless WAN as primary transports for different use cases for improved throughputs and latency.

R

LAN Integrated Hardware

NSR2900X-14D supports up to 24 fixed 10/100/1000M switching LAN ports, providing the IP terminal access capability and meeting the requirement of the user for integrating the routing and switch to construct the access network.

R

ZTP

Zero-Touch (USB, DHCP, EDP…), easy for installation and configuration.

R

Rich software features

  • Support multiple WAN protocols: DDR, PPPoE, NDIS, EDP, 5G/4G, etc.
  • Support typical TCP/IP services: DHCP, DNS, NAT, ACL, etc.
  • Support rich QoS features: PQ, FQ, CBWFQ, H-QoS, WRED, etc.
  • Support fast convergence protocols: BFD, FRR, etc.
  • Support Segment-Routing protocols: SR-MPLS, SRv6.
  • Support full routing protocol: Static, RIP, OSPF, IRMP, BGP, ISIS, etc.
  • Support rich VPN protocol: DMVPN, IPSec, GRE, L2TPv3, VPLS/MPLS, etc.
  • Support time synchronization protocol: NTP, PTP(IEEE1588v2),etc.
  • Support IPv6 protocols: Static Routev6, RIPng, OSPFv3, IS-ISv6, BGP4+, etc.
R

High reliability and business continuity

  • Support 220V AC redundant power supply.
  • Redundant WAN connection for failover protection and load balancing.
  • Dynamic failover protocols such as VRRP/VBRP, backup interface, track IP.
R

Easy O&M

Multiple management methods: standard SNMP monitoring and management, Web-based GUI, SD-WAN based management, traditional command line interface.

Built-in Embedded Event Platform (EEP), allow the customer to monitor critical event, and automatic execute pre-defined actions.

R

Security

  • Provide Port Security, 802.1X, DHCP Snooping ,etc.
  • Provide CPU Protection, Anti-attack, etc.

Typical Application

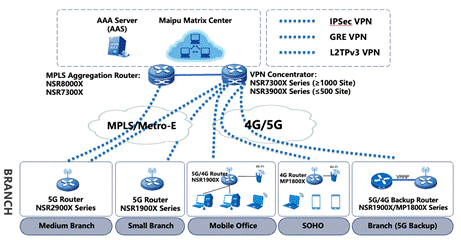

Enterprise Leased Line Solution

Maipu offers a comprehensive enterprise WAN network solution. The NSR1900X/NSR2900X series access routers are designed for enterprise branch offices and support multiple leased line networks, including MPLS or SDH links. The NSR3900X/NSR7300X/NSR8000X series aggregation routers are intended for enterprise headquarters. Maipu Matrix View is an SNMP centralized management platform.

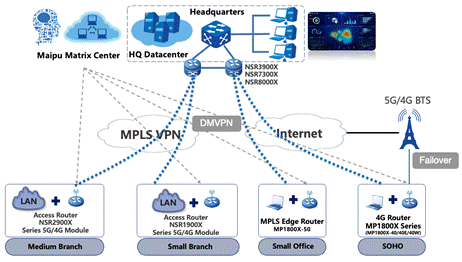

Enterprise VPN Solution

The Maipu NSR1900X/NSR2900X series routers offer various VPN access functions for secure communication between branch offices and headquarters over internet. Secure tunnels such as GRE, L2TP, IPSec, and DVPN can be established between HQ and branches to ensure secure data access and transmission.

Telecom Managed CPE

Telecom deploys NSR1900X/NSR2900X series access routers as CPE routers at enterprise branch offices. These routers support various WAN access modes, including SDH, MPLS, Metro-E, and 5G/4G links, making them compatible with most telecom WAN networks.

Download Technical Data Sheet

For product specifications, technical data, and order information, please download the Technical Data Sheet below.
