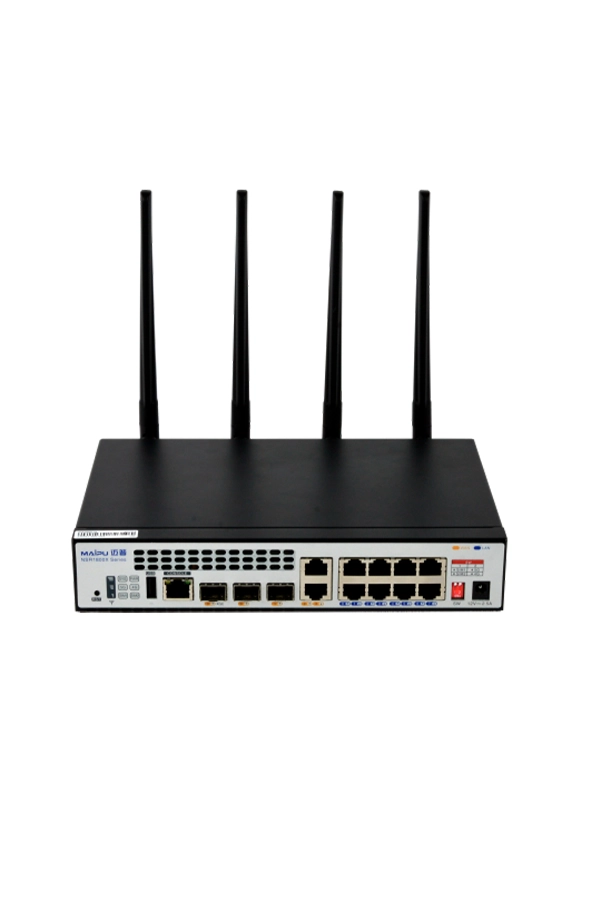

NSR1800X-55 5G NR Router
NSR1800X-55 access router developed by Maipu is one new-generation enterprise-class 5G access router, applicable to enterprise and government branch offices. It integrates various modern network technologies, such as routing, switching, QoS, security, and 5G to provide flexible access modes and secure and high-efficiency service experience for the users.
NSR1800X-55 access router supports rich WAN and LAN interfaces, providing the high-speed terminal access capability, and meeting the requirement of the user for integrating the routing and switch to construct the access network. NSR1800X-55 5G and Ethernet WAN ports both can serve as the master port. The master/standby switching supports the failover is based on the link status and peer track IP.
NSR1800X-55 access router supports 1*RJ45 console port, 1*USB interface, 1*10GE SFP+ WAN port, 2*GE SFP WAN ports, 2*GE RJ45 WAN ports, 8*GE RJ45 LAN ports, dual SIM slots and single 5G modem, 1*220V AC and 1*12V DC power input.
Product Features
High Performance
- Multi-core high performance processor.
- 10G SFP+, 1G SFP and 1G RJ45 high-speed WAN ports.
- 10/100/1000M Base-T high-speed LAN ports.
Reliable Hardware
- Fanless and Fin heat dissipation design.
- Metal shell and IP30 protection.
Flexible Deployment
- Support multiple WAN protocols: DDR, PPPoE, EDP, DHCP, Static, 4G/5G
- Small Dimension, easy to install and deploy.
- Support advanced protocols, such as BGP, MPLS, and VPLS.
- IPv6 Ready, fully support IPv6 features.
High Reliability
- Provide multiple link backup to ensure connectivity.
- Fault detection in milliseconds, and support auto roll back.
5G NR Access
- In-built one 5G modems, easy for installation.
- Fully compatible with 4G LTE network.
Easy O&M
Multiple management methods: standard SNMP monitoring and management, Web-based GUI, traditional command-line interface.
Service convergence
Integration of functions such as routing, switching, security, firewall, simplifying networking deployment.
Security
Built-in firewall features, Complete VPN access, ACL, NAT…
ZTP
Typical Application

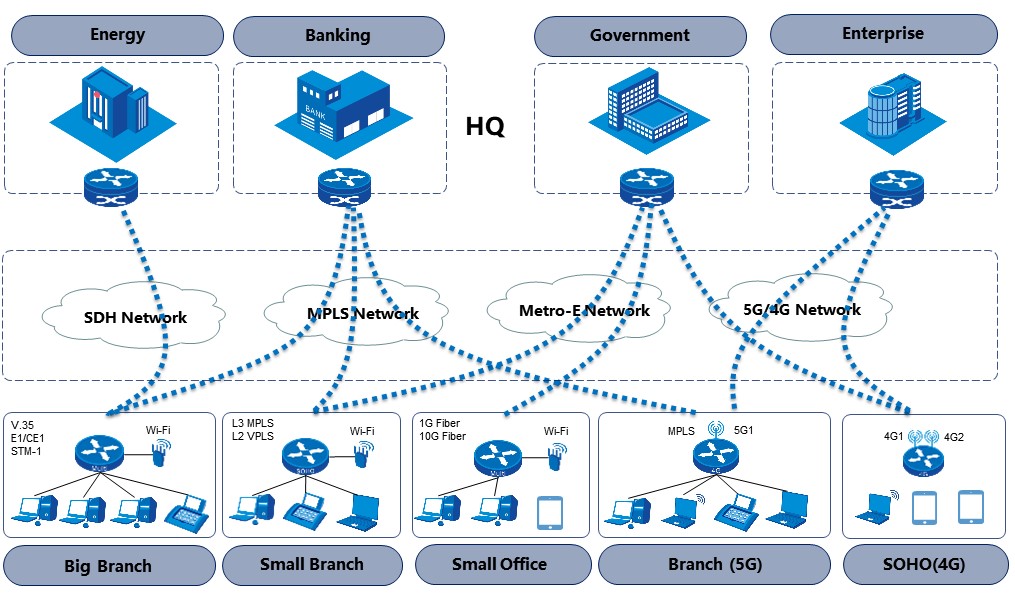

Enterprise WAN Solution
Maipu can provide total solution of enterprise WAN network, NSR1800X/1900X/2900X series access router is working at enterprise branch offices and supporting multiple physical links, such as MPLS links, Internet links, and 5G/4G mobile network links. NSR3900X/NSR7300X/NSR7500X series aggregation router is working at enterprise HQ. Maipu Matrix View is SNMP centralized managed platform.

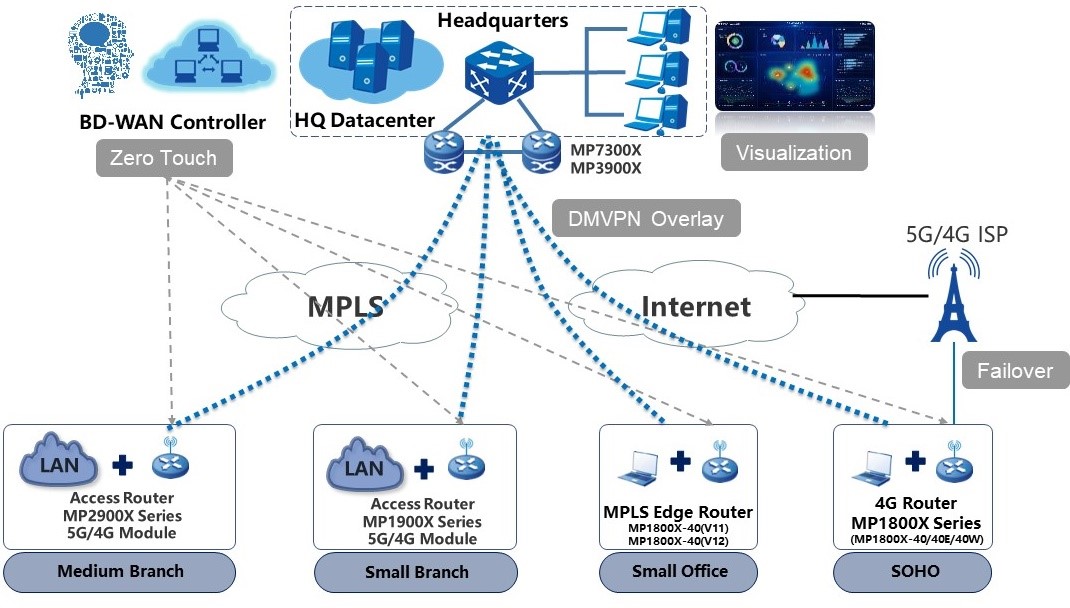

Telecom Managed Service
In this scenario, Maipu MP1800X/1900X/2900X series routers are used as the egresses of enterprise branches and provide flexible WAN access, supporting SDH, MPLS, Metro-E, and 5G/4G links, helping the customer reduce the OPEX, CAPEX and improving customer’s network experience.

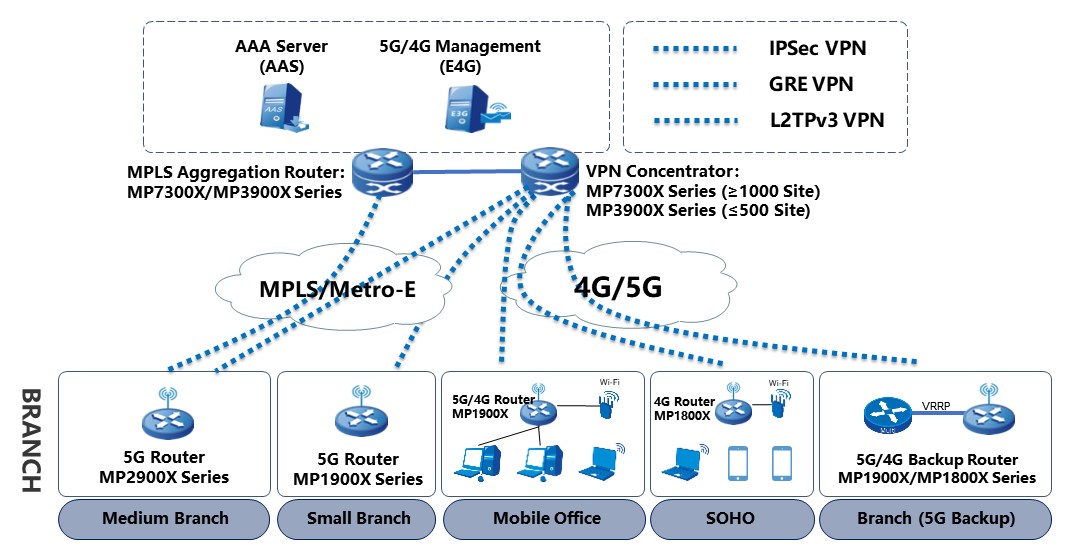

Enterprise VPN Solution
Maipu MP1800X/1900X/2900X series router provides various VPN access functions for communication between branches and headquarters over multiple physical links. Secure tunnels such as GRE, L2TP, IPSec, and DVPN tunnels can be set up between the HQ and branches for secure data access and transmission.
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
