MP7500X Series Core Router
MP7500X series core router further implements «multicore power» on the basis of the leading «dual-core power». Based on the ATCA structure design and meeting the users’ high-performance requirements, it provides the most complete dual-redundancy or multi-redundancy design for the whole system, providing users with the high reliability of core-device carrier-class. With unified MyPower-R software, MP7500X series router provides abundant routing, backup, network security services, IP multicast, QoS, network management, and other functions, supports a variety of network layer and link layer protocols, supports BGP border gateway protocol and MPLS function, and can play the PE node or P node function in the network.
As a multi-purpose universal data processing and routing platform, MP7500X series router can cooperate with a full range of Maipu routers to provide operators, government, finance, energy, transportation, education, military and other industrial users and large/medium-sized enterprise users with a full range of WAN solutions, widely applied at the core backbone layer and core aggregation layer of the above industries.MP7500X series core router is the next generation version of MP7500E series which was widely deployed in many countries.
MP7500X series core router has two models. It has two main control slots, two switching fabric slots, 4/8 service slots, adopts the multi-core processor to realize the distributed forwarding architecture, and supports 40G/10G/1G, and other TDM interfaces.

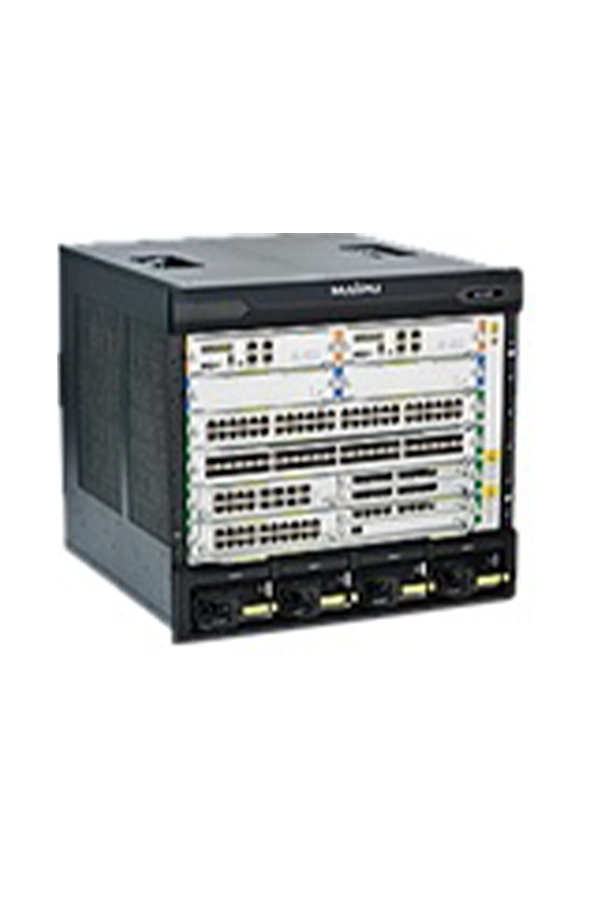

MP7500X-04 supports dual control engine slots, dual switching fabric slots, four service slots, four AC power slots, one fan slot.

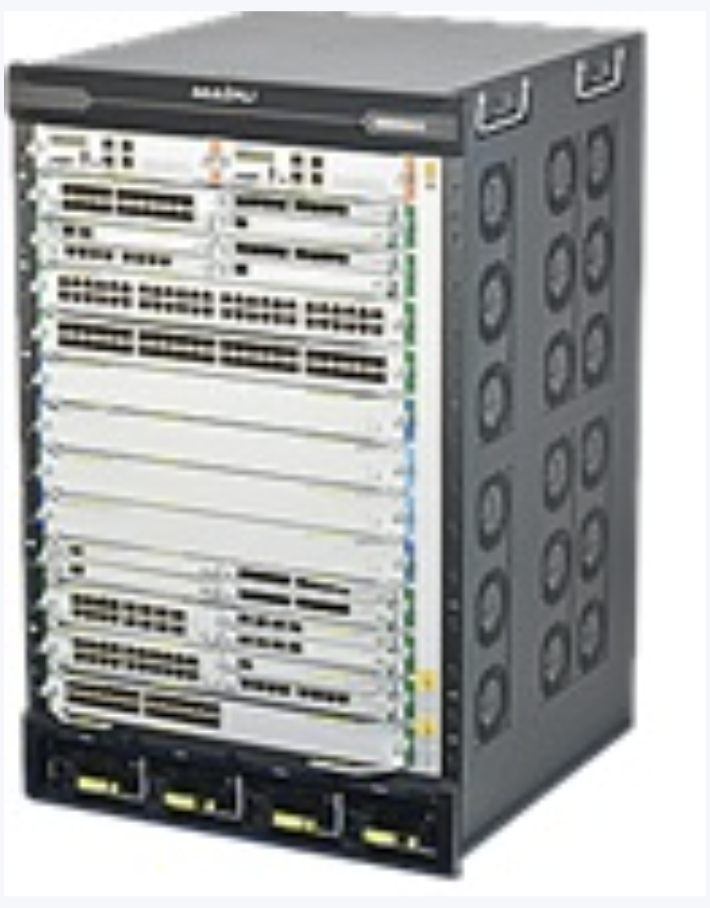

MP7500X-10 supports dual control engine slots, dual switching fabric slots, eight service slots, four AC power slots, two fan slots.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Flexible uplink link
MP7500X series core router support four kinds of high-performance multi-core SPU module for customers real requirements; meanwhile, MP7500X uplink supports various mainstream WAN access link technologies, such as 1G/10G/40G Ethernet, E1/CE1, POS/CPOS, etc.
More than eight expansion slots
MP7500X series core router is modular design which has rich expansion slots. The whole device supports 4/8 extended slots totally. The strong expansion ability can provide high-density access and protect customer investment. All the modules of MP7500X support hot-swap.
High performance
MP7500X series core router support high performance and the configured ACL, QoS, have small influence for the forwarding performance. And customer can also upgrade the performance by changing SPU service engines.
Advanced Secure service
MP7500X series core router has high performance VPN aggregation function. Meanwhile, the device data can be transmitted in the secure MPLS/VPLS, IPsec, GRE, L2TP tunnel, preventing the data from being accessed and tampered and providing the higher security for the application over the network.
Rich software features
MP7500X series core router provides rich software features; supports various application technologies, such as IPv4/IPv6, VPN, MPLS, multicast, ACL, MAC address binding, access control, bandwidth limitation, MSTP, and NAT; supports RSVP resource reserving protocol and CAR; provides hierarchical QoS function to ensure the high priority of the key services; support the queue management policies, such as FIFO, PQ, CQ, FQ, WFQ, CBWFQ, and LLQ.
Rich Management modes
MP7500X series core router supports complete management modes, including SNMPv1/v2c/v3, CLI, USB drive deployment, MIB, RMON, SYSLOG, TR069, IPFIX, etc. Combine with Maipu SNMP Management Platform, it can provide the simple and easy-to-use remote network management.
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
