MP3900X Series Aggregation Router
At the cloud calculation and mobile interconnection times with the fast increasing of the service traffic, the development trend of the customer service diversifying and network flatting makes the aggregation capability requirement of the network for the router higher. High reliability, high performance, high density, high security, and green are the urgent requirements of the customer for the aggregation router. Based on the customer requirements, Maipu launch the new-generation centralized service aggregation router MP3900X series.
MP3900X series aggregation router support four kinds of high-performance SPU module which integrates rich gigabit or 10 gigabit fixed WAN interfaces, customers do not need to configure additional WAN module; meanwhile, MP3900X uplink supports various mainstream WAN access link technologies, such as Ethernet, 3G/4G, E1/CE1, POS/CPOS and V.35 serial line.
MP3900X series aggregation router is the next generation version of MP3900 series which was widely deployed in many countries. It includes two models which are MP3900X-06, MP3900X-08.

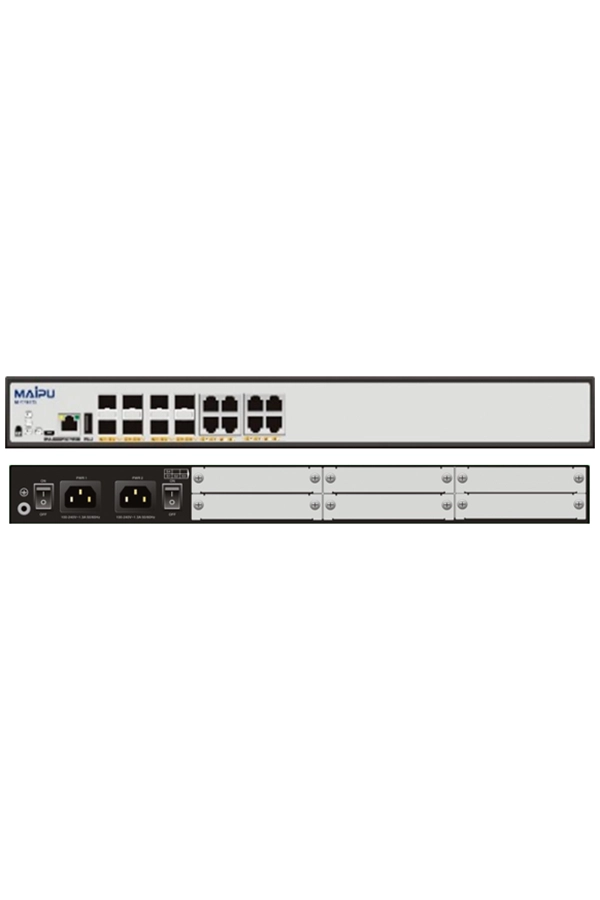

MP3900X-06 supports 8*Gigabit Combo WAN Interface,6*RM2B Slots, Fixed Dual AC Power Supply.

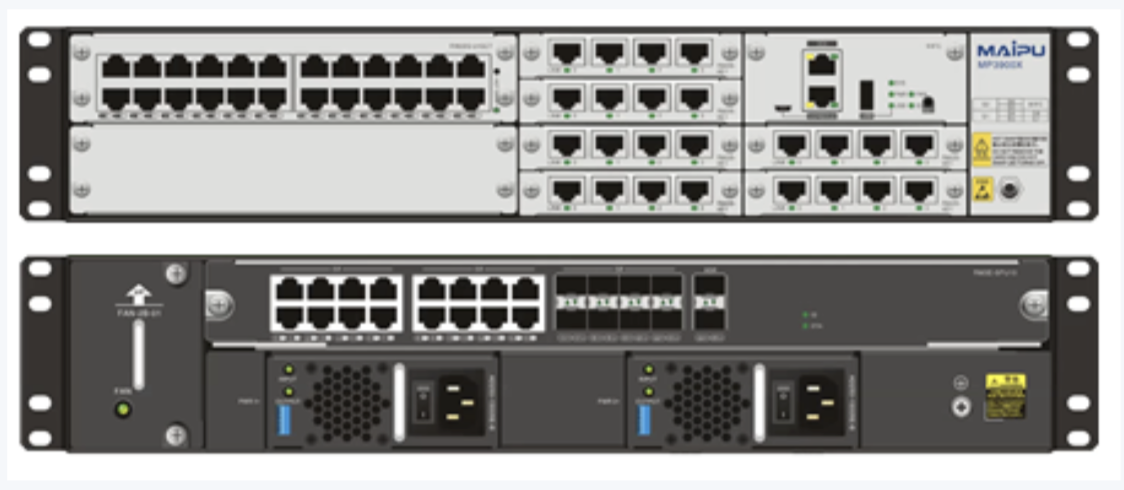

MP3900X-08 supports 1*SPU slot, 6*RM2B Slots, 2*RM3E Slots, 2*Modular Power Slots, 1*Fan Slot.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Flexible uplink
MP3900X-06 integrates fixed 8 Combo WAN ports, and 6 RM2B slots to support various WAN links such as SDH, TDM, Ethernet and 5G/4G mobile network.
MP3900X-08 support four kinds of high-performance SPU module which integrates rich gigabit or 10 gigabit fixed WAN interfaces, customers do not need to configure additional WAN module; meanwhile, MP3900X uplink supports various mainstream WAN access link technologies, such as Ethernet, 3G/4G, E1/CE1, POS/CPOS and V.35 serial line.
Extensible modular slots
MP3900X series aggregation router is modular design which has enough expansion slots. The whole device supports 6/6+2 extended slots totally.
The strong expansion ability can provide high-density access and protect customer investment. All the modules of MP3900X series support hot-swap.
High performance
- Multi-core high performance processor.
- 10/100/1000M/10G high-speed ethernet port.
- Built-in hardware acceleration engine, high encryption performance.
- Maipu Express Forwarding (MEF) technologies, speeding up forwarding and processing of data packets.
5G Ready
The MP1900X/2900X/MP3900X series routers are built for future 5G networks, with higher throughputs with 5G NR. WAN networks are looking at wireless WAN as primary transports for different use cases for improved throughputs and latency.
ZTP
Zero-Touch (USB, DHCP, EDP…), easy for installation and configuration.
Rich software features
- Support multiple WAN protocol: FR, SDH, TDM, DDR, PPPoE, EDP, DHCP, Static…
- Support typical TCP/IP services: DHCP, DNS, NAT, GRE, L2TP…
- Support advanced protocol, such as BGP, MPLS, VPLS.
- IPv6 Ready, fully support IPv6 features.
High reliability and business continuity
- Redundant power supplies (RPS), support dual AC power or DC power (MP3900X-08 only).
- Redundant WAN connection for failover protection and load balancing.
- Dynamic failover protocols such as VRRP/VBRP, backup interface, track IP.
Easy O&M
Multiple management methods: standard SNMP monitoring and management, Web-based GUI, Cloud based management, traditional command line interface.
In-built Embedded Event Platform (EEP), allow the customer to monitor critical event, and automatic execute pre-defined actions.
Service convergence
- Provide network security with integrated application inspection firewall.
- High-performance VPNs: IPSec, DVPN, L2TP over IPSec.
Security
Typical Application

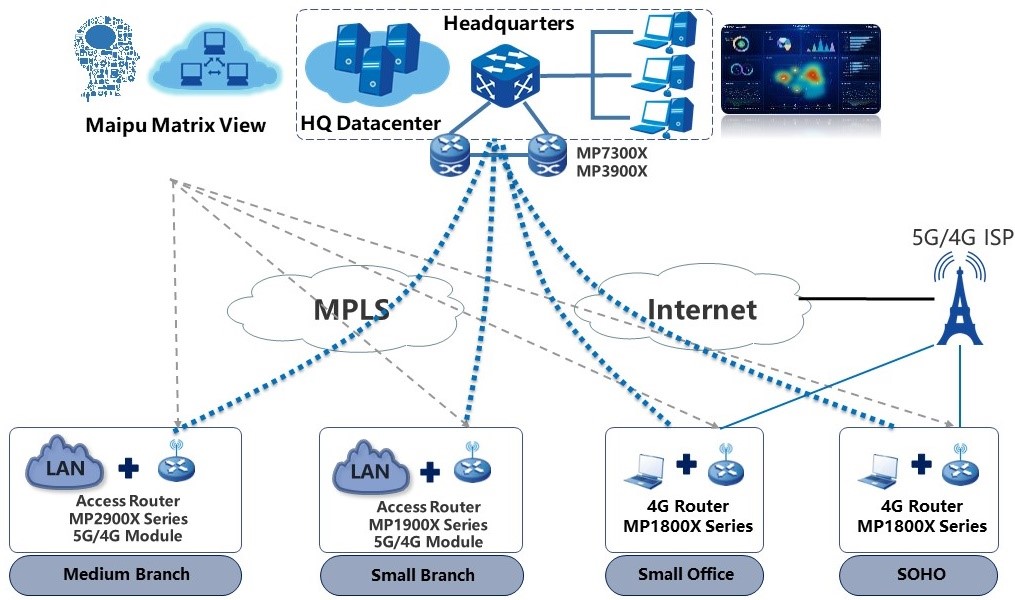

Enterprise WAN Solution
Maipu can provide total solution of enterprise WAN network, MP1800X/1900X/2900X series access router is working at enterprise branch offices and supporting multiple physical links, such as MPLS links, Internet links, and 5G/4G mobile network links. MP3900X/MP7300X/MP7500X series aggregation router is working at enterprise HQ. Maipu Matrix View is SNMP centralized managed platform.

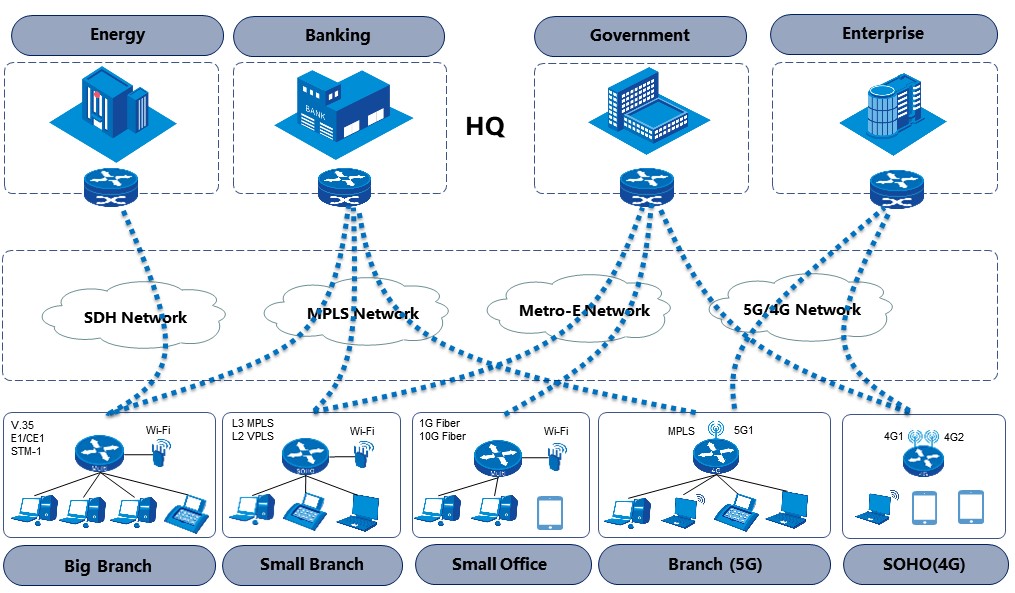

ISP Managed Service
In this scenario, Maipu MP3900X series routers are used as enterprise HQ/Branch egresses gateway and support flexible WAN access, to support SDH, MPLS, Metro-E, and 5G/4G links, helping the customer reduce the OPEX, CAPEX and improve customer’s network experience.

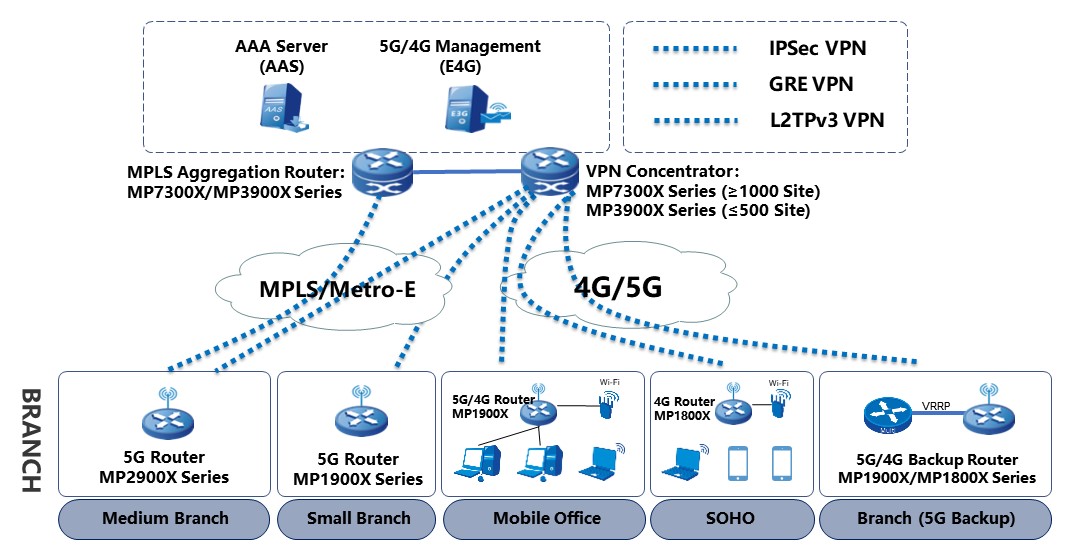

Enterprise VPN Solution
Maipu MP3900X/MP7300X series provide various VPN access functions for communication between branches and headquarters over multiple physical links. Secure tunnels such as GRE, L2TP, IPSec, and DVPN tunnels can be set up between the HQ and branches for secure data access and transmission.
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
