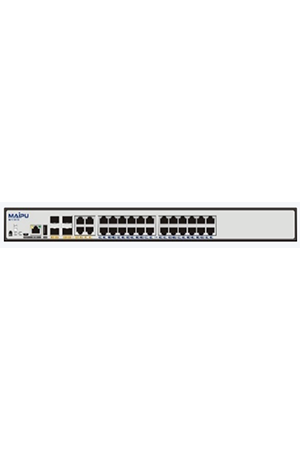

MP2900X Series MPLS Access Router - Imagen 2
MP2900X Series MPLS Access Router - Imagen 3

MP2900X series modular access router developed by Maipu is one new-generation enterprise-class access router, applicable to enterprise and government customers for their medium & large size branches. It integrates various WAN network technologies, such as Ethernet, SDH, and 5G/4G/3G network, to provide flexible access modes for enterprise users.

MP2900X series router integrates routing, switching, and security functions to support rich encryption algorithms and fully protects data security. The LAN L2/L3 switching function has greatly enhanced the flexibility of the fixed interface.

MP2900X series router is the next-generation version of the MP2900 series, which was widely deployed in many countries. It includes several models, which are MP2900X-04D, MP2900X-14D, and MP2900X-24D.

MP2900X-04D-AC(D1) supports one RJ45 console port, one USB interface, four WAN combo ports (RJ45/SFP), four expansion slots, and dual AC power supplies.

MP2900X-04D(D2) supports one RJ45 console port, one USB interface, four WAN combo ports (RJ45/SFP), four expansion slots, and dual DC power supplies.

MP2900X-14D-AC(D1) supports one RJ45 console port, one USB interface, four WAN combo ports (RJ45/SFP), 24 gigabit LAN ports, four expansion slots, and dual AC power supplies.

MP2900X-24D-AC(D1) supports one RJ45 console port, one USB interface, two WAN combo ports (RJ45/SFP), two copper WAN ports (RJ45), 48 gigabit LAN ports, four expansion slots, and dual AC power supplies.

 (Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)

Product Features

R

Flexible uplink

MP2900X integrates fixed WAN and LAN interfaces. The WAN uplink supports various mainstream WAN access link technologies, such as Ethernet, 5G/4G, E1/CE1, POS, and V.35 serial line.

R

Extensible modular slots

MP2900X series aggregation router is modular designed. it has enough expansion slots. The whole device supports 4 extended slots.

R

High performance

  • Multi-core high-performance processor.
  • 10/100/1000M high-speed ethernet WAN/LAN port.
  • Built-in hardware acceleration engine, high encryption performance.
  • Maipu Express Forwarding (MEF) technologies, speed up the forwarding and processing of data packets.
R

5G Ready

The MP1900X/2900X/MP3900X series routers are built for future 5G networks, with higher throughputs with 5G NR. WAN networks are looking at wireless WAN as primary transports for different use cases for improved throughputs and latency.

R

Integrated Hardware

MP2900X series router supports up to 24/48 fixed 1000M switch access ports, providing the IP terminal access capability and meeting the requirement of the user for integrating the routing and switch to construct the access network.

R

ZTP

Zero-Touch (USB, DHCP, EDP…), easy for installation and configuration.

R

Rich software features

  • Support multiple WAN protocols: DDR, PPPoE, EDP, DHCP, Static, 5G/4G.
  • Support typical TCP/IP services: DHCP, DNS, NAT, GRE, L2TP…
  • Support advanced protocol, such as BGP, MPLS, VPLS.
  • IPv6 Ready, fully support IPv6 features.
R

High reliability and business continuity

  • Optional redundant power supplies (RPS), support dual AC power.
  • Redundant WAN connection for failover protection and load balancing.
  • Dynamic failover protocols such as VRRP/VBRP, backup interface, track IP.
R

Easy O&M

Multiple management methods: standard SNMP monitoring and management, Web-based GUI, Cloud based management, traditional command line interface.

Built-in Embedded Event Platform (EEP), allow the customer to monitor critical event, and automatic execute pre-defined actions.

R

Service convergence

  • Provide network security with integrated application inspection firewall.
  • High-performance VPNs: IPSec, DVPN, L2TP over IPSec.
R

Security

Built-in firewall features, stateful firewall, IPS, URL Filtering, VPN access.

Typical Application

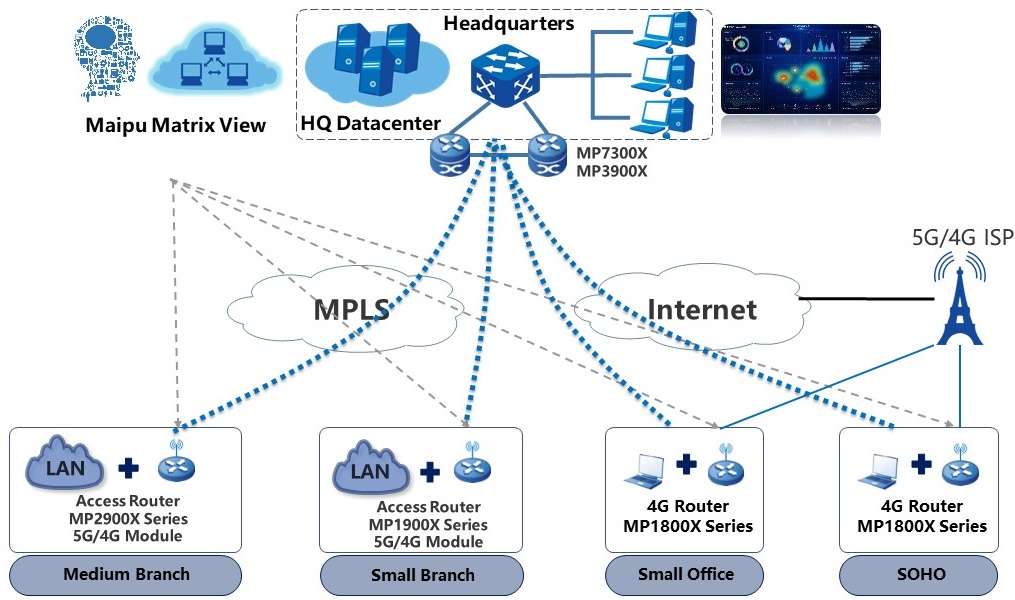

Enterprise WAN Solution

Maipu can provide total solution of enterprise WAN network. MP1800X/1900X/2900X series access router is working at enterprise branch offices and supports multiple physical links, such as MPLS links, Internet links, and 5G/4G mobile network links. MP3900X/MP7300X/MP7500X series aggregation router is working at enterprise HQ. Maipu Matrix View is SNMP centralized managed platform.

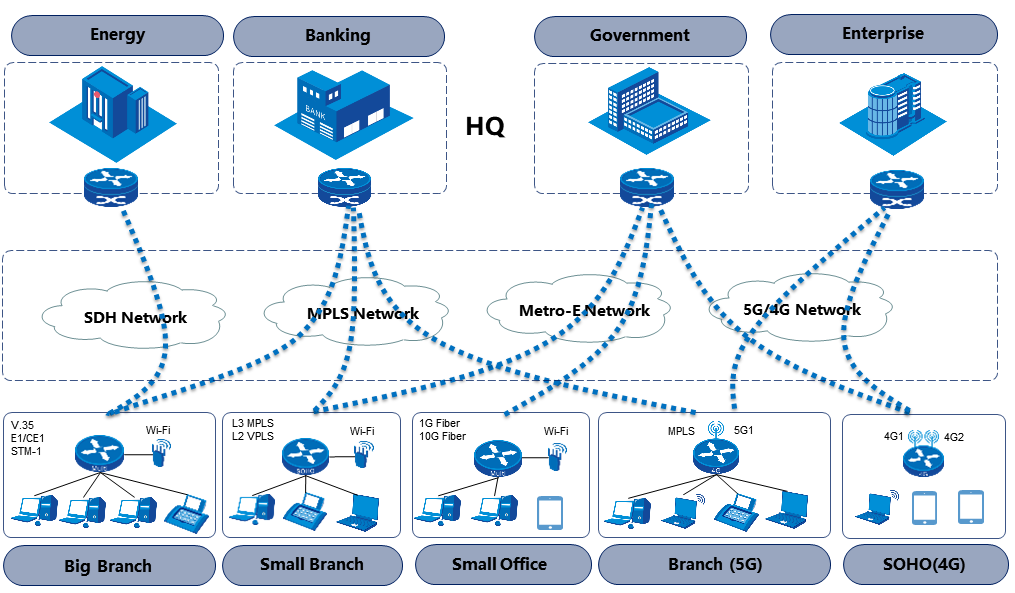

Telecom Managed Service

In this scenario, Maipu MP1800X/1900X/2900X series routers are used as enterprise branches egresses and provide flexible WAN access, to support SDH, MPLS, Metro-E, and 5G/4G links, helping the customer reduce the OPEX, CAPEX and improve customer’s network experience.

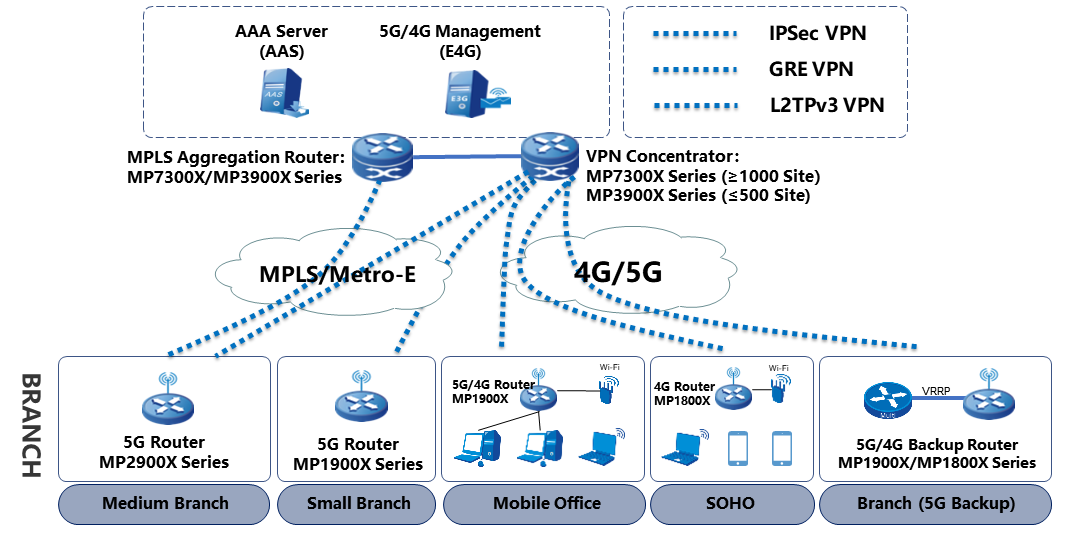

Enterprise VPN Solution

Maipu MP1800X/1900X/2900X series router provides various VPN access functions for communication between branches and headquarters over multiple physical links. Secure tunnels such as GRE, L2TP, IPSec, and DVPN tunnels can be set up between the HQ and branches for secure data access and transmission.

Download Technical Data Sheet

For product specifications, technical data, and order information, please download the Technical Data Sheet below.
