MP1900X Series Access Router

MP1900X Series Access Router

MP1900X series modular access router developed by Maipu is one new-generation enterprise-class 5G MPLS access router, applicable to enterprise and government customers, for their small and medium sized branch offices. It integrates various WAN network technologies, such as Ethernet, SDH, 5G/4G/3G to provide the flexible access modes for enterprise users.

MP1900X series router integrates routing, switching and security functions, supports rich encryption algorithms, and fully protects data security. The LAN L2/L3 switching function has greatly enhanced the flexibility of the fixed interface.

MP1900X series router is the next generation version of MP1800-35E series which was widely deployed in many countries. It includes one model which is MP1900X-22-AC.

MP1900X-22-AC supports One RJ45 Console port, one USB interface, Five Gigabit WAN ports (One SFP + Four RJ45), and eight Gigabit Ethernet LAN ports, dual expansion slots, 100V-220V AC power input.

(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)

Product Features

R

Flexible uplink

MP1900X integrates   fixed WAN and LAN interface, WAN uplink supports various mainstream WAN   access link technologies, such as ethernet, and V.35 serial line.

R

Extensible modular slots

MP1900X series   aggregation router is modular design which has enough expansion slots. The   whole device supports 2 extended slots totally.

R

High performance

  • Multi-core high performance processor.
  • 10/100/1000M high-speed ethernet WAN port.
  • Built-in hardware acceleration engine, high encryption performance.
  • Maipu Express Forwarding (MEF) technologies, speeding up forwarding and processing of data packets.
R

Service convergence

  • Provide network security with integrated application inspection firewall.
  • High-performance VPNs: IPSec, DVPN, L2TP over IPSec.
R

ZTP

Zero-Touch (USB, DHCP, EDP…), easy for installation and configuration.
R

Rich software features

  • Support multiple WAN protocol: DDR, PPPoE, EDP, DHCP, Static
  • Support typical TCP/IP services: DHCP, DNS, NAT, GRE, L2TP…
  • Support advanced protocol, such as BGP, VPLS.
  • IPv6 Ready, fully support IPv6 features.
R

High reliability and business continuity

  • Redundant WAN connection for failover protection and load balancing.
  • Dynamic failover protocols such as VRRP/VBRP, backup interface, track IP.
R

Easy O&M

Multiple management methods: standard SNMP monitoring and management, Web-based GUI, cloud based management, traditional command line interface.

In-built Embedded Event Platform (EEP), allow the customer to monitor critical event, and automatic execute pre-defined action.

R

Security

Built-in firewall features, stateful firewall, IPS, URL Filtering, VPN access.

Typical Application

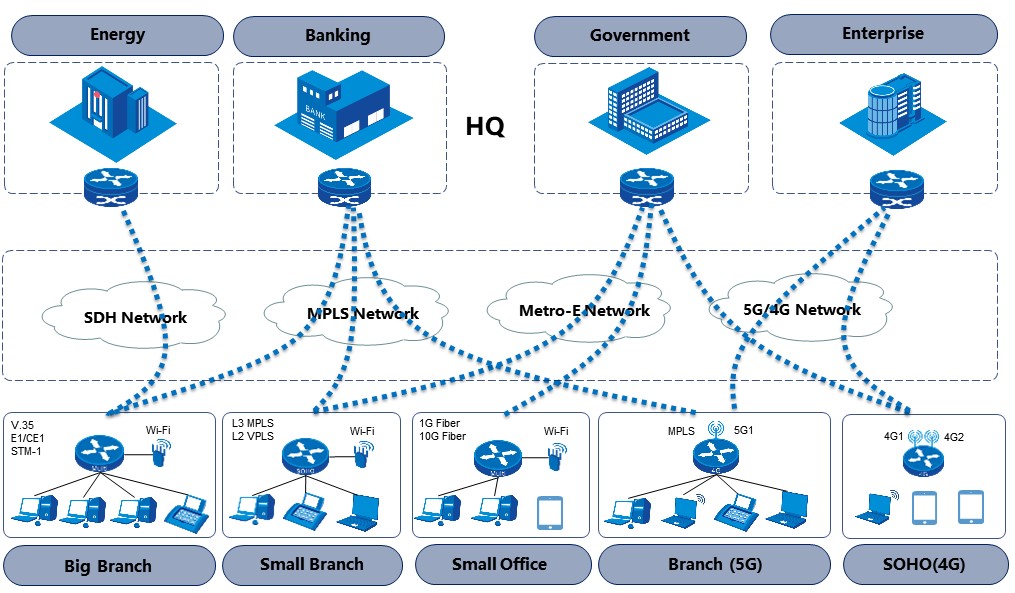

Telecom Managed Service

In this scenario, Maipu MP1800X/1900X/2900X series routers are used as enterprise branches egresses and provide flexible WAN access, to support Metro-E network, helping the customer reduce the OPEX, CAPEX and improve customer’s network experience.

Download Technical Data Sheet

For product specifications, technical data, and order information, please download the Technical Data Sheet below.

Download PDF
