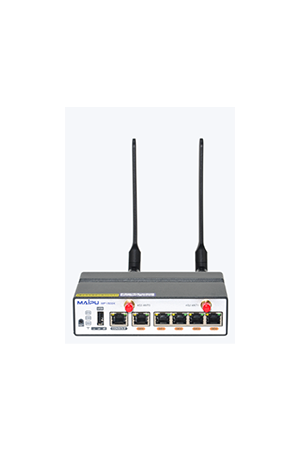

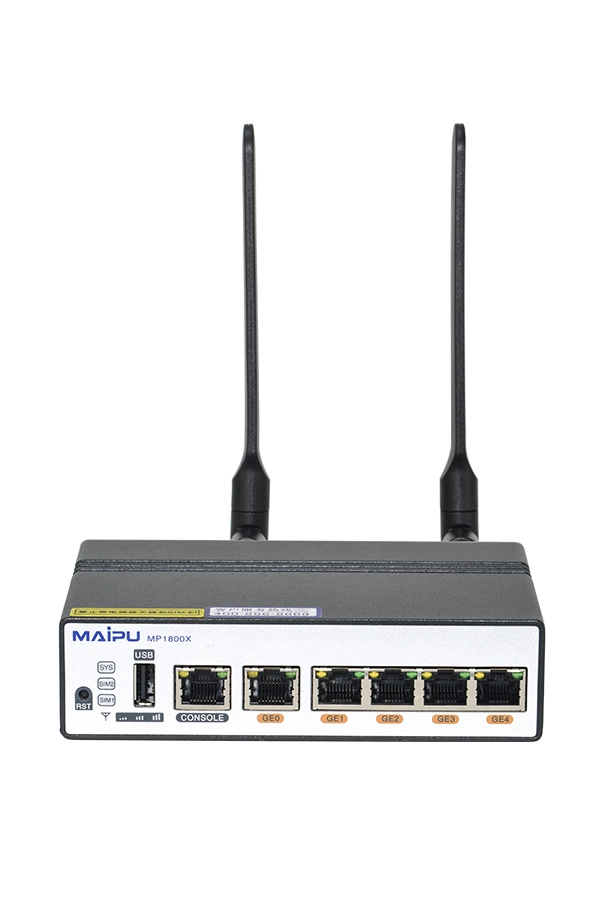

MP1800X-40 4G LTE Router
MP1800X-40 Series router developed by Maipu is one new-generation enterprise-class LTE edge router, applicable to enterprise and government branch offices. It integrates various modern network technologies, such as routing, switching, QoS, security, 3G/4G to provide the flexible access modes and secure and high-efficiency service experience for the users.
MP1800X-40 series router upgrades all the interfaces from megabit to gigabit, it supports up 5*100/1000M Ethernet ports which can be configured as WAN or LAN, providing the high-speed terminal access capability, and meeting the requirement of the user for integrating the routing and switch to construct the access network.
MP1800X-40 Series 3G/4G interface and Ethernet ports can back up for each other. 3G/4G and Ethernet WAN ports both can serve as the master port. Ethernet WAN port supports static address, DHCP, and PPPOE access modes. The master/standby switching supports the failover is based on the link status and peer track IP.
MP1800X-40 Series includes two models which are MP1800X-40, MP1800X-40E.
MP1800X-40 supports One RJ45 Console port, one USB interface, five 10M/100M/1000M Ethernet ports, dual SIM slots and single 3G/4G modem, 12V DC Connector.
MP1800X-40E supports One RJ45 Console port, one USB interface, five 10M/100M/1000M Ethernet ports, dual SIM slots and Dual 3G/4G modem, 12V DC Connector.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
High Performance
- Multi-core high performance processor.
- 10/100/1000M Base-T high-speed ethernet port.
Reliable Hardware
- Widely working temperature, up to 60℃.
- Fanless and Fin heat dissipation design.
- Metal shell and IP30 protection.
Flexible Deployment
- Support multiple WAN protocol: DDR, PPPoE, EDP, DHCP, Static, 4G/3G
- Small Dimension easy to install and deploy.
- Support advanced protocol, such as BGP, MPLS, VPLS.
- IPv6 Ready, fully support IPv6 features.
High Reliability
- Provide multiple link backup to ensure connectivity.
- Fault detection in milliseconds, and support auto roll back.
4G LTE Access
- In-built one or two 4G modems, easy for installation.
- Support dual SIM card in all models.
- Support SIM card backup and SIM card auto switchover.
- Support Active-Active working mode. (MP1800X-40E only)
Easy O&M
Service convergence
Integration of functions such as routing, switching, security, firewall, simplifying networking deployment
Security
Built-in firewall features, stateful firewall, IPS, URL Filtering, VPN access.
ZTP
Zero-Touch (USB, DHCP, EDP…), easy for installation and configuration.
Typical Application
Enterprise WAN Solution
Maipu can provide total solution of enterprise WAN network, MP1800X/1900X/2900X series access router is working at enterprise branch offices and supporting multiple physical links, such as MPLS links, Internet links, and 5G/4G mobile network links. MP3900X/MP7300X/MP7500X series aggregation router is working at enterprise HQ. Maipu Matrix View is SNMP centralized managed platform.
Telecom Managed Service
In this scenario, Maipu MP1800X/1900X/2900X series routers are used as enterprise branches egresses and provide flexible WAN access, to support SDH, MPLS, Metro-E, and 5G/4G links, helping the customer reduce the OPEX, CAPEX and improve customer’s network experience.
Enterprise VPN Solution
Maipu MP1800X/1900X/2900X series provide various VPN access functions for communication between branches and headquarters over multiple physical links. Secure tunnels such as GRE, L2TP, IPSec, and DVPN tunnels can be set up between the HQ and branches for secure data access and transmission.
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
