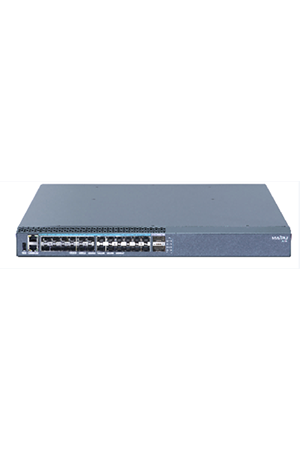

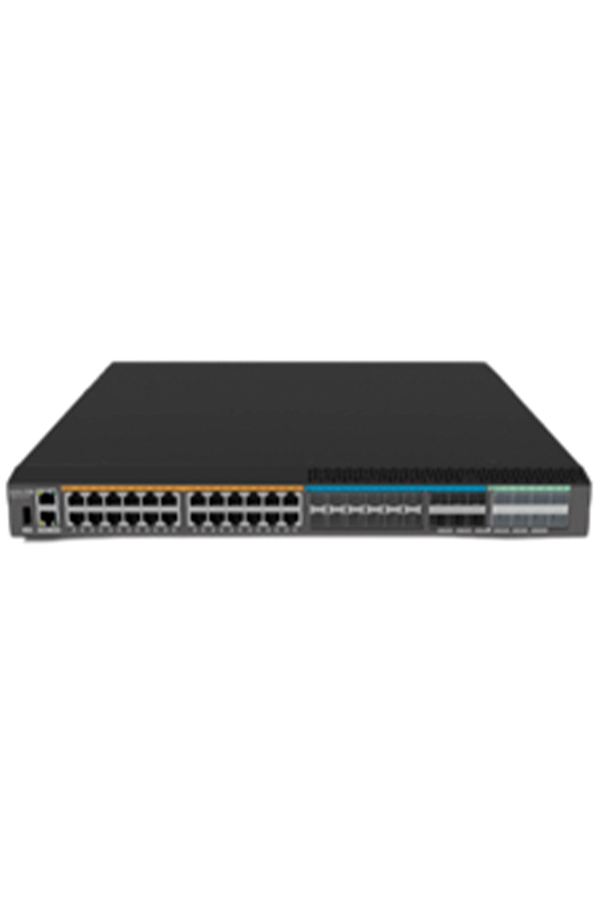

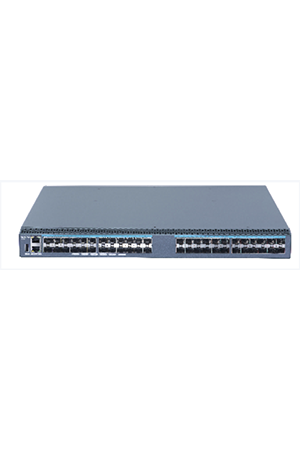

IS580 Series L3 Cloud Managed Aggregation Switch
IS580 series switch is a high-performance stackable L3 aggregation routing switch developed by Maipu. It is applied in enterprise campus network and easy to deploy Layer3 switching solution that offers enhanced security and 1G/10G/25GE/40GE uplinks, RIP/OSPF/BGP/IS-IS, L2&L3 Multicast, VST/M-LAG stacking enabled and flexible management.
The IS580 series switch can be used as L3 aggregation devices and well meets the comprehensive SMB customer requirements such as branch office, hotel, restaurant, school, logistic, chain store, etc.
The IS580 series switch includes IS580-26XF, IS580-48XF, IS580-54TXFP.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Cloud Based Management
The IS580 series switch support cloud management by the MMC (Maipu Managed Cloud), the switches can be quickly deployed and configured from the cloud, reducing the installation cost. With cloud management, IT staff can remotely access and manage switches from anywhere with an internet connection, making it easier to troubleshoot.
High-Density 10G Ports and 40G Uplinks
As the prevalence of application server network card speeds shifts from Gigabit to 10/25 Gigabit, there are new demands on port bandwidth and access density in network access layer switches. The IS580 series switches currently offer fixed configurations with 24/48*10G optical interfaces and provide 2*40G uplink interfaces. The flexible port combinations fully meet the interface composition and port density requirements for current network deployments in the access layer.
Intelligent stacking technology
The IS580 series switch is equipped with Maipu VST stacking function that allows devices to be stacked into one logical device via the 10G/40G ports. VST (Virtual Switching Technology) stacking combines multiple switches to form a logical virtual switch, improving device and link reliability, network expansion, and simplifying configuration and management.
High availability
The IS580 series switch offers advanced redundancy and reliability features, catering to diverse networking requirements. In addition to supporting traditional spanning tree protocols such as STP, RSTP, and MSTP, the switch also complies with the ITU-T G.8032 international standard. This Ethernet Ring Protection Switching (ERPS) protocol enables rapid 50ms failover within Ethernet ring network topologies, ensuring seamless connectivity and minimal downtime.
Perfect security policy
The IS580 series switch offers a comprehensive suite of security features, including user authentication, port security, ACLs, loopback detection, and 802.1X authentication. It also incorporates IP Source Guard, DHCP/ND Snooping, Host Guard, Dynamic ARP Inspection, and PPPoE+ security mechanisms. These robust security functions ensure user access and network protection.
Advanced QoS
The IS580 series switch offers sophisticated QoS capabilities for optimal network performance. Supporting eight queues per port and advanced scheduling algorithms such as SP, RR, WRR, and WDRR. The switch accommodates diverse priority mapping techniques, including 802.1p, COS, and DSCP, enabling fine-grained control over traffic classification and prioritization.
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
