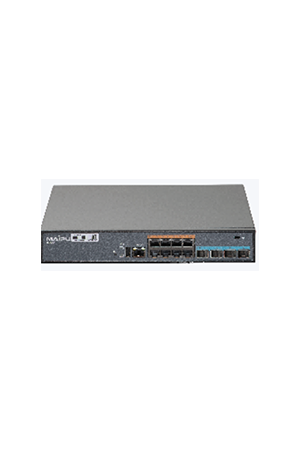

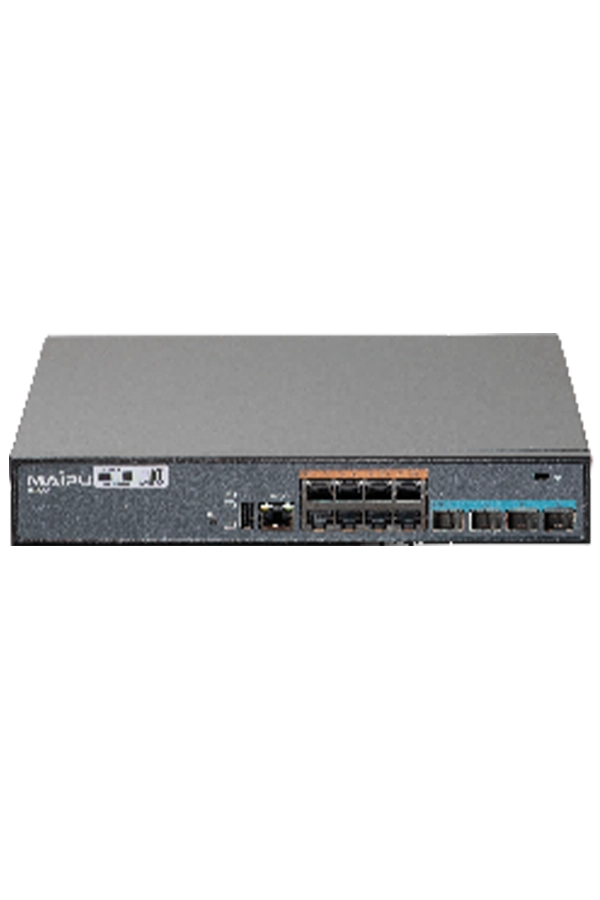

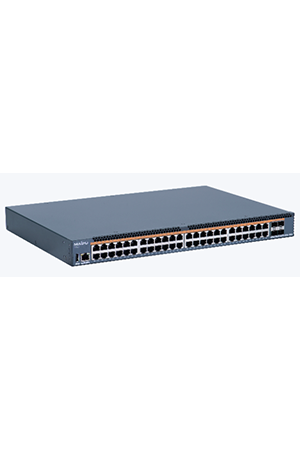

IS320 Series L3 Lite Cloud Managed Access Switch
The IS320 series switch is a high-performance stackable L3 Lite access switch developed by Maipu. It is applied in SMB LAN network and easy to deploy Layer2/3 switching solution that offers enhanced security and 10GE uplinks, Static Route, L2 Multicast, VST/M-LAG stacking enabled and comprehensive management methods. The IS320 series switch well meets the comprehensive SMB customer requirements such as branch office, hotel, restaurant, school, logistic, chain store, etc.
The IS320 series switch includes IS320-12TXF-AC, IS320-28TXF-AC, IS320-28TXP-AC, IS320-52TF-AC four models.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Cloud Management
The IS320 series switch support cloud management by the MMC (Maipu Managed Cloud), the switches can be quickly deployed and configured from the cloud, reducing the installation cost. With cloud management, IT staff can remotely access and manage switches from anywhere with an internet connection, making it easier to troubleshoot.
Intelligent stacking technology
The IS320 series switch is equipped with Maipu VST stacking function that allows devices to be stacked into one logical device via the 10G SFP+ ports. VST (Virtual Switching Technology) stacking combines multiple switches to form a logical virtual switch, improving device and link reliability, network expansion, and simplifying configuration and management.
High availability
The IS320 series switch offers advanced redundancy and reliability features, catering to diverse networking requirements. In addition to supporting traditional spanning tree protocols such as STP, RSTP, and MSTP, the switch also complies with the ITU-T G.8032 international standard. This Ethernet Ring Protection Switching (ERPS) protocol enables rapid 50ms failover within Ethernet ring network topologies, ensuring seamless connectivity and minimal downtime.
Perfect security policy
The IS320 series switch offers a comprehensive suite of security features, including user authentication, port security, ACLs, loopback detection, and 802.1X authentication. It also incorporates IP Source Guard, DHCP/ND Snooping, Host Guard, Dynamic ARP Inspection, and PPPoE+ security mechanisms. These robust security functions ensure user access and network protection.
Intelligent PoE&PoE+ Detection
The IS320 series switches support POE/PoE+ function meeting the international 802.11af/at standard. A single port can provide maximum 30W power consumption. The IS320 series PoE switches support IPDD (Intelligent PoE Dynamic Detection) function. With this function, the switch can dynamically detect whether the terminal device is online or transmitting data normally. If an exception is found, the switch will reset PoE power and restart the terminal device.
Advanced QoS
The IS320 series switch offers sophisticated QoS capabilities for optimal network performance. Supporting eight queues per port and advanced scheduling algorithms such as SP, RR, WRR, and WDRR. The switch accommodates diverse priority mapping techniques, including 802.1p, CoS, and DSCP, enabling fine-grained control over traffic classification and prioritization.
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
