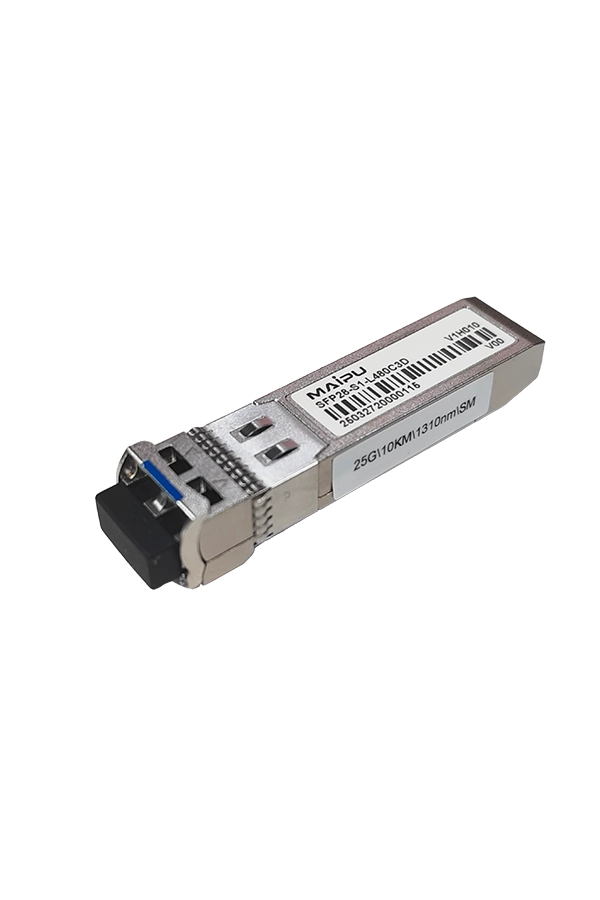

25G SFP28 10KM Transceiver
Maipu’s SFP28-S1-L480C3D single-mode transceiver is SFP28 module for duplex optical data communications support up to 25.78Gb/s. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This module is designed for single-mode fiber and operates at a nominal wavelength of 1310nm.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Features
- Operating data rate up to 25.78Gbps
- Duplex LC optical connector
- 1310nm DFB laser transmitter
- RoHS compliant and Lead Free
- Distance up to 10km on 9/125um SMF on single-mode fiber
- Metal enclosure for lower EMI
- Power dissipation <1.2W
- Operating case temperature Standard: -20℃~+70℃
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
