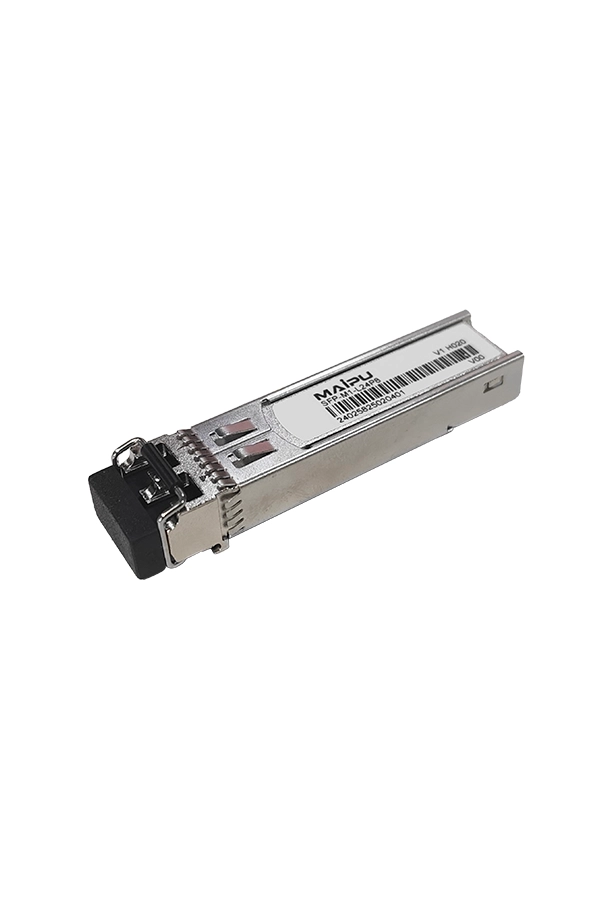

1G SFP 550M Transceiver
Maipu SFP-M1-L24P8 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.063Gbps and 550m transmission distance with MMF. They are RoHS compliant and lead-free.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Features
- Up to 1.25Gb/s data links
- Duplex LC optical connector
- 850nm VCSEL laser transmitter
- RoHS compliant and Lead Free
- Distance up to 550m on multi-mode fiber
- Metal enclosure for lower EMI
- Low power dissipation <800mW
- Operating case temperature: -20℃~+70℃
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
