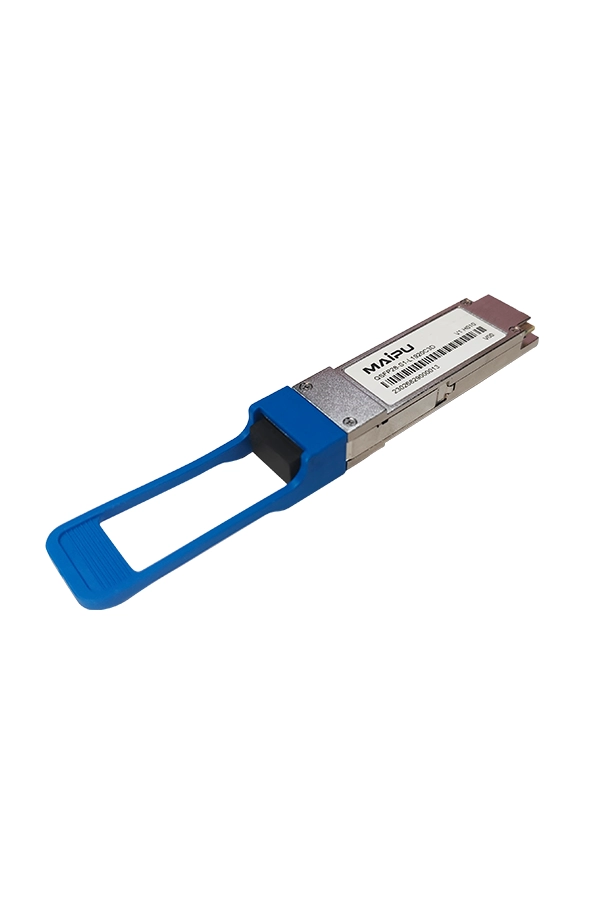

100G QSFP28 LR4 10KM Transceiver
Maipu QSFP28-S1-L1920C3D is compliant with QSFP28 MSA, IEEE 802.3bm. It is cost-effective, low power consumption with a single 3.3V power supply. The module has an aggregate bit rate up to 103.125Gbps by multiplexing of 4 independent LAN-WDM optical lanes, each lane capable of transmitting 25Gb/s over 10km SMF with FEC. It is fabricated with all-metal and compact size housing for superior EMI performance.
Product Features
- Compliant with 100G Ethernet IEEE 802.3bm 100GBASE
- Duplex LC optical connector
- 4*25Gb/s 1310nm DFB laser transmitter
- RoHS compliant and Lead Free
- Distance up to 10km on single mode fiber
- Metal enclosure for lower EMI
- Low Power Consumption <4.5W
- Operating case temperature: 0℃ to 70℃
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
