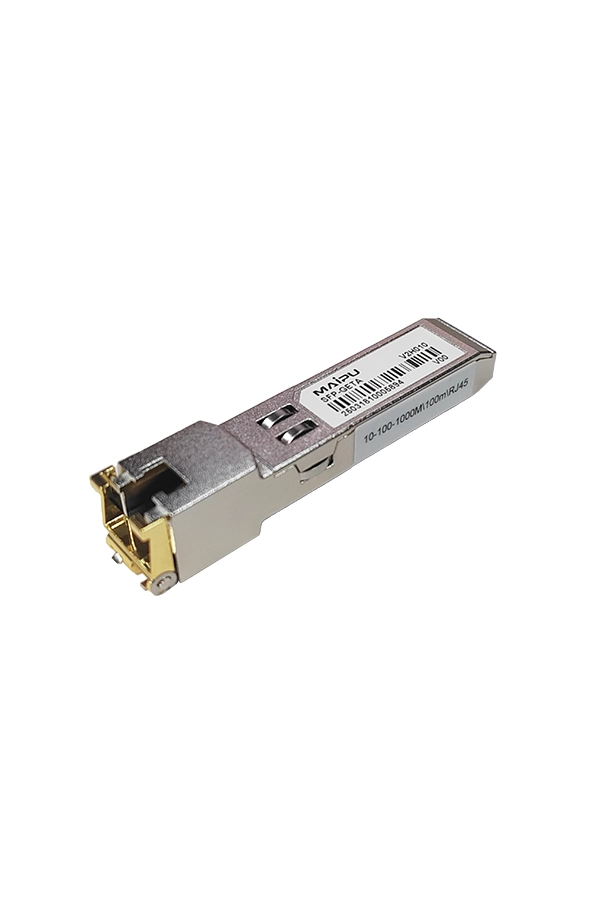

10/100/1000M SFP Transceiver
Maipu SFP-GET series Copper Small Form Pluggable (SFP) transceivers is high-performance, cost-effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports 1000Mbps full duplex data links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.
Product Features
- Up to 1.25Gb/s bi-directional data links
- 1.25G 10/100/1000M Ethernet over Cat5 cable
- Hot-pluggable SFP footprint
- Fully metallic enclosure for low EMI
- Low power dissipation (1.05 W typical)
- Compact RJ-45 connector assembly
- 10/100/1000Mbps compliant in host systems with SGMII or Serders interface
- Case temperature range of 0℃ to +70℃(Commercial)
Download Technical Data Sheet
For product specifications, technical data, and order information, please download the Technical Data Sheet below.
